Overview

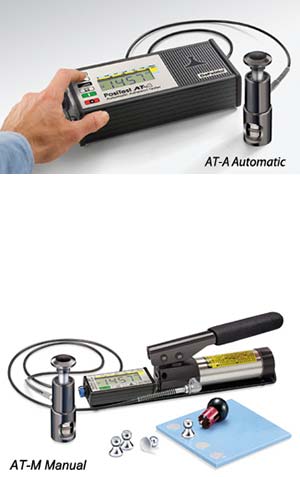

Measures adhesion of coatings to metal, wood, concrete and other rigid substrates Revolutionary self-alignment feature and pull rate indicator. Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others Available in 2 models… Manual or Automatic

Simple

Pull Rate Indicator allows operator to easily monitor and adjust the rate of pull in accordance with international test methods Easily select dolly sizes, change measurement units or store readings, with the touch of a button Conversion charts not required – tester automatically calculates pressure based on dolly size Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record Each kit comes with everything needed for testing

Durable

Environmentally sealed enclosure – weatherproof, dustproof and shockproof – meets or exceeds IP65 Can be used in any position Rugged carrying case Two year warranty

Accurate

Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using NIST traceable load cell Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces Hi-grade, industrial pressure sensor ensures continued accuracy Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others

Versatile

Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size Optional PosiSoft® software available for downloading LCD displays pressure value in psi or MPa 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
